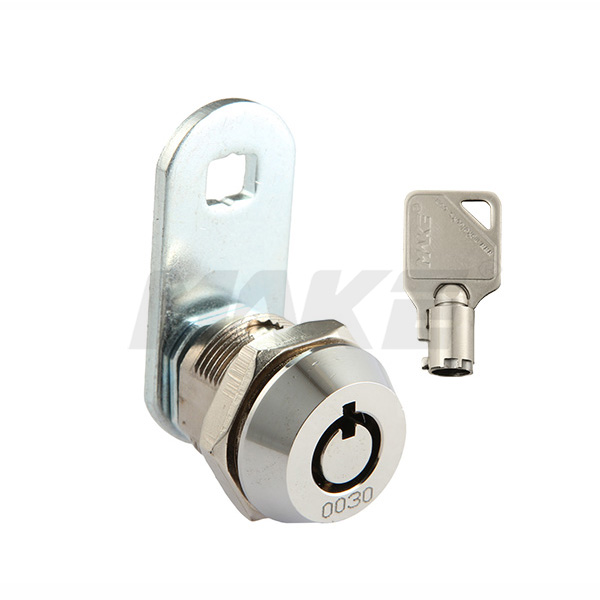

MK100BS Tubular Key Locker Lock

This is also called tubular key cam lock. It has three types of key for your choice- key alike，key different and master key. We are an intellegent Lock manufacture providing the one-stop security solution for gym, workplace, bureau, hosipital, supermarket, etc, and we are expecting become your long-term partner in China.

Fonctionnalités :

7 pins or 10 pins available
Anti-drill ball available
Key alike，Key different，Master key system available
Various length,rotations,key pull cam for option

Application :

Intellectualized terminal equipment, metal/wooden cabinet, pay phone, underground strobe, vending/game machine, safety box, locker, offer, AD showcase, coin-op, vehicle, mail box & tools box etc.

Lock type	MK100BXS	MK100BX	MK100BM	MK100BL	MK100BXL	MK100BXXL	MK100BXXXL
Function length(X)	12.5mm	17.5mm	22.5mm	25mm	28mm	30mm	38.1mm
Cam distance(Y)	TBA	TBA	TBA	TBA	TBA	TBA	TBA
Overall length(Z)	21.5mm	26.5mm	31.5mm	34mm	37mm	39mm	54mm
Key way	1-4	1-4	1-4	1-4	1-4	1-4	1-4
Cam turns	90°/ 180°	90°/ 180°	90°/ 180°	90°/ 180°	90°/ 180°	90°/ 180°	90°/ 180°

Q: Quand allez-vous organiser la production?
Un: Nous organisons généralement la production immédiatement après réception de votre paiement si nous avons l’article en stock. Autrement, S’il vous plaît confirmer avec nous pour le délai d’exécution.
